There are four steps in the powder coating process: surface pretreatment, preparation of powder coating ingredients, powder coating, and curing.
Powder coating is typically applied electrostatically and then cured under heat or with ultraviolet light, and it's used on metals such as aluminum, stainless steel and steel.
Fabmann uses a special blend of polymer resin, and blend of curatives, pigments and additives is applied for creating specific color, finish and UV protection is based upon application background.
To optimize the powder coating advantage, it is important to understand our clients' requirement on color, application background, UV resistance and base material, and Fabmann normally choose of the world famous brands like Aksu Nobel, PPG, Axalta, Tiger and Nippon for our clients.
| Applikazzjoni tal-Kisi tat-Trab |
Fabmann provides prime powder coating quality, so don't need to worry about severe humidity or weather conditions. But certain sever environment condition could cause adverse effects on the powder coating, and this is why the proper pre-treatment is so important prior to powder coating. To satisfy our clients' expectation, we have quite few different powders which we can choose from.
First is polyester, and it is the most commonly used powder coating type because of its flexibility and impact resistance, and it serve the purpose for indoors or outdoor application.
Second is polyurethane, and it's a slight step up from polyester in hardness due to a different curing agent used, and it does not have the mechanical flexibility of polyester.
Third is epoxy, and it offers great chemical and corrosion resistance, but it does not stand the weathering well. Therefore, it's best to use in indoor or as a primer under a topcoat.
The last one is super durable polyester, and it is designed to hold their color and gloss over a longer period of time. Plus, it also provides better humidity and corrosion protection compared with normal polyester powder.
Jekk trid tikseb l-aħjar mill-proġett tal-kisi tat-trab, jekk jogħġbok żomm f'moħħok dawn il-varjabbli. Naturalment, Fabmann għandhom l-għarfien u l-faċilità kollha biex jagħtuk servizz professjonali ta 'kisi tat-trab fiċ-Ċina, u l-kisi tat-trab tagħna jista' jgħinek biex issegwi partijiet tal-metall fabbrikati apposta.
1.Fabbrikazzjoni tal-metall apposta bħal partijiet tal-ittimbrar, parentesi tad-dwana u tubi fabbrikati.
2.Structural steel fabrication like section steel, steel profile or aluminum profiles.
3.Fabbrikazzjoni tal-folja tal-metall bħal partijiet tal-folja tal-metall, pannelli u kompartimenti
4.Custom welded parts
5.Profili iffurmati b'rombli jew miġbuda fil-kesħa
| Kif Fabmann Iwettaq Kontroll tal-Kwalità tal-Kisi tat-Trab? |
L-inġinier tal-kwalità tagħna jieħu kontroll strett tal-kwalità fuq l-aspetti li ġejjin
√ Iċċekkja l-ħxuna tal-kisi tat-trab permezz ta 'gauge manjetiku
√ Kontroll tat-tleqqija
√ Adhesion test, Use utility knife to cut the coating in grid-like formula , attempting to lift it by adhesive tape, and the adhesion will be considered to fail if the coating flakes off.
√ Visual inspection upon apearance, pin holes, discoloration, craters, poor curing, sags and run, fish eye, and poor powder spray is strictly rejected.
√ Hanging marks repair or very small uncoated area is acceptable to do liquid paint tough-up repair, but the paint shall be polyurethane and color-matched paint.
√It-tiswija ta' touch-żona kbira hija totalment ipprojbita
√ Test tat-trattament tal-wiċċ: ISO 2409, ISO 4624, EN 13438
| Difetti tal-Kisi tat-Trab |
Sprej tat-Trab Fqir
Trab Kisi Difett Ħut Eye
Tfixkil tal-kisi tat-trab
Toqba tal-pin tal-kisi tat-trab u wiċċ mhux maħdum
Toqba tal-pin tal-kisi tat-trab
Kisi tat-Trab Tqaddid Fqir
Kisi tat-Trab Wiċċ mhux maħdum
Craters tal-Kisi tal-Enerġija
Qawwa Kisi Sag u Mexxi
| Applikazzjoni ta 'Partijiet Miksijin bit-Trab |
Due to Fabmann's strict control over powder coating process and final inspection, we are able to deliver very high quality powder coated products like custom brackets, welded structures, steel profiles stamping parts and steel enclosure and frames to our clients. Our products are widely used in the following industries:
1.Elevaturi u Makkinarju
2.Kostruzzjoni
3.Telekomunikazzjoni
4.Infrastruttura
5.Mina u Minjieri
Partijiet tal-Azzar Stainless Miksijin bit-Trab

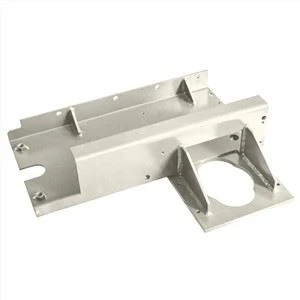

Trab Miksija Custom Bracket
Egħluq Miksija bit-Trab
Detentur tal-pajp miksi bit-trab
Taqsima tal-Azzar Miksija bit-Trab
Trab OEM Bracket
